Motion

The FTC Starter Kit V3.1 is the ultimate starting point for your team’s FIRST Tech Challenge season. Built based on feedback directly from teams, this kit is packed with essential REV DUO components you need to design, prototype, and compete...

The REV UltraPlanetary Gearbox Kit is the entry point into using the REV UltraPlanetary System. The kit comes with UltraPlanetary Cartridges to support six different final gear reductions ranging from nominally 3:1 to 60:1 allowing for the right amount...

The REV Smart Robot Servo V2 – available in Balanced and UltraSpeed configurations – is a fully configurable metal-geared servo designed to simplify servo-based mechanisms. Each SRS V2 can be used as a standard angular, custom angular, or...

New and improved, the Mecanum Drivetrain Kit V2 gives teams all the parts needed to build a Mecanum Drivetrain for use within robotics programs like FTC. This updated kit uses Ultra 90 Degree Gearboxes to place the UltraPlanetary HD Hex Motors within the...

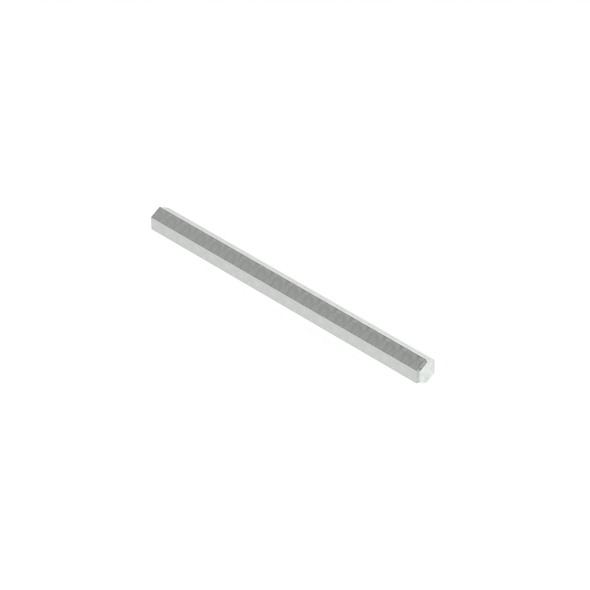

5mm Hex Shafts are compatible with the REV DUO System. The hex shaft interface completely eliminates the need for expensive hubs or using potentially unreliable set screws. REV shafts are made out of strong, corrosion resistant stainless steel...

UltraPlanetary Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems. The UltraPlanetary Outside Mounting Bracket (REV-41-1621) is used to...

The 550 Motor Pinions are used for transferring power from a 550 class motor, like the HD Hex Motor or NEO 550, to a mechanism. These pinions come in four different types. The 32DP pinion gear is compatible with 32DP gears,the UltraPlanetary Pinion is...

DUO Flap Wheels are compatible with the REV DUO System and feature a 5mm Hex Bore. They are used on intakes to pick up irregular gamepieces, playing a similar role to compliant wheels. While compliant wheels provide compliance with minimal slip between...

GT2 3mm Pitch Belts are compatible with both the REV ION System and the REV DUO System. These belts go hand in hand with GT2 timing pulleys. Use belts and pulleys in tight to fit areas where adjustment is difficult. Specifications Pitch: 3mm Width:...

This is all of the hardware included in the UltraPlanetary Gearbox Kit & HD Hex Motor (REV-41-1600) Kit Contents QTY 6 - M3x40mm QTY 6 - M3x30mm QTY 6 - M3x20mm QTY 6 - M3x10mm QTY 2 - M3x8mm Button head QTY 2 - M3x6mm Set...

The UltraPlanetary 550 Motor Plate works with the REV HD Hex Motor, REV NEO 550 Brushless Motor, and other 550 class motors.  Specifications Module: 0.55 Pressure Angle: 20° Materials: Sintered Steel Weight: 33.5 g (0.074...

The REV UltraPlanetary Female 5mm Output V2 is the output stage of the REV UltraPlanetary system. With two different ways to transfer power, the output stage allows designers to choose the option best suited for the application. The V2 version of the...

The UltraPlanetary 1/2in Hex Adapter is designed to face mount to the UltraPlanetary gearbox and provide a convenient 1/2in hex output shaft that is commonly used in the FIRST Robotics Competition. The recommended hardware for mounting the...

With an efficient right-angle configuration, the Ultra 90 Degree Gearbox offers a robust solution to building a more compact robot. The Ultra 90 Degree Gearbox allows you to connect the UltraPlanetary Gearbox and the HD Hex Motor (REV-41-1600)...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 5:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 4:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 3:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...

This #25 roller chain is designed for use with #25 sprockets. Each package includes 1 connecting link, and additional links are available separately in the #25 Connecting Links – 5 Pack. For custom chain lengths, we recommend the REV #25 Chain...

The FTC Timing Belt and Pulley Bundle contains an assortment of components needed for a pulley-based motion transmission system. Timing Belts and Pulleys are lighter, more compact, and more efficient at transferring motion than chain and sprockets...

The 5mm Hex Shaft and Spacer Bundle features an assortment of REV products that work to transmit intended motion and constrain unintended motion in the DUO Build System. Use this bundle to restock your existing shaft and spacer supply, or as a great...
