Hardware & Tools

#10-32 Standoffs are compatible with the REV ION System and provide spacing for mounting key items on your robot. These standoffs are tapped on each end for a #10-32 thread and have a 3/8in flat to flat dimension, similar to a #10-32 nut...

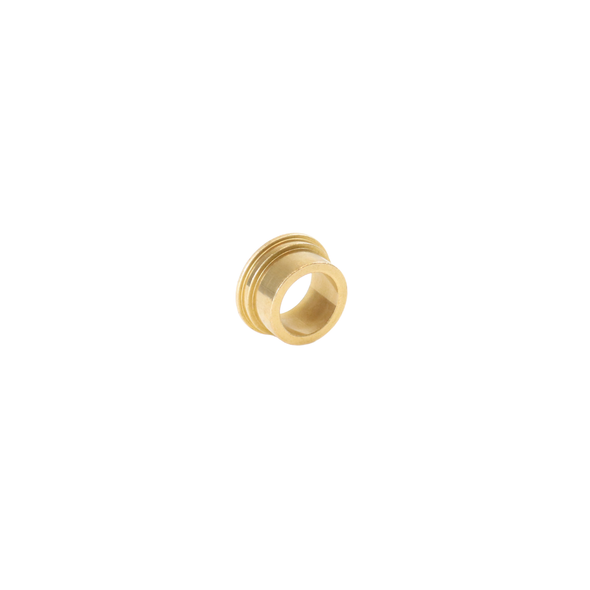

The Stepped Bushing - 3/4in ID is compatible with the REV ION System. This bushing used in conjunction with the MAXSpline Shaft and Dead Axle Tube - 3/4in can be used to build robust and effective rollers and intakes...

MAXSpline Shaft Collars provide mechanical retention for components mounted on MAXSpline Shaft and use a two piece aluminum clamping design for secure attachment. Both versions are black anodized for durability and integrate cleanly within the REV ION...

MAXSpline Shaft Endcaps are compatible with the REV ION System and transform your MAXSpline Shaft extrusion into a live axle driven by a 1/2in Hex shaft. MAXSpline Shaft Endcaps come in two different materials: a durable plastic version and an upgraded...

Tube Nuts for 3/4in Dead Axle Tube are compatible with the REV ION System. This #10-32 tube nut presses into the end of the tube and supplies a tapped hole for easy mounting. Typically used with dead axle applications. The left-hand threaded...

3/16in Rivets are compatible with the REV ION System are perfect for a variety of applications where a strong, permanent joint is required. Place the rivet into a hole from a single side (a “blind” hole) and then use a rivet...

Steel hardware of the appropriate size to work with the REV ION System. Length measured from tip to underside of screw head. Documentation ION Build System Guide Hardware Basics Onshape Application Examples Product...

Steel hardware of the appropriate size to work with the REV ION System. Length measured from tip to underside of screw head. Documentation ION Build System Guide Hardware Basics Onshape Application Examples Product...

#10-32 Shaft End Screw V1 and V2 are compatible with the REV ION System and are used to retain parts on any ION hex shaft instead of shaft collars. 1/2in Rounded Hex Shafts in various lengths are available and come tapped with #10-32 holes. The...

Bearings 15T Spline Bearing - Flanged - 1.125in OD - 4 Pack (REV-21-3294-PK4) Featuring a 8mm internal diameter and a 1.125in outer diameter, this bearing is designed to fit into a MAXSpline bore while supporting a 15T Spline shaft. The flange adds a way...

These Low Profile Nylon Lock Nuts are thin enough to fit inside the channel of the ION 1in Extrusion. The embedded nylon ring provides tight vibration resistant hold on the threads of the screw. Specifications Material: Zinc-plated Steel Diameter &...

The #25 Chain Turnbuckle is compatible with both the REV ION System and REV DUO System. It is designed to adjust the length of a #25 Chain by replacing a few links in a run and also allows the user to tension the chain by adjusting the...

The 3in MAXSwerve Module Wheel Hardware Pack was designed for the 3in MAXSwerve Module. This kit is for FRC teams looking to streamline their wheel maintenance at competitions. With this kit, teams can pre-build their wheel assemblies, making...

The 1in Pivot Joint is compatible with the REV ION System. Create a pivot joint at the end of a piece of MAXTube - 1x1 with Grid Structure. Specifications Material: POM (Acetal/Delrin) Documentation REV ION Build System Documentation Introduction...

A custom-designed tool that allows teams to easily break and re-assemble #25 chain. The mandrel is used to push out the chain pin. If using connecting links, the pin can be completely removed, but the depth guide screw allows the option of partially...

High-strength and low-stretch cord that is ideal for actuating lifts and other linear mechanisms. Also known as Spectra or Dyneema, this cord type minimizes the need for adjustments and re-tensioning after first assembly due to its low-stretch properties...
