The All-New FRC Control System

Follow along with the REV Robotics Blog and stay up-to-date with a behind-the-scenes look at the design and manufacturing process of the new FRC Control System. Get a sneak peek of product updates and detailed specifications as the REV Team works to bring game-changing products to the FRC community.

POWER DISTRIBUTION HUB

Power Distribution Hub



MORE FLEXIBILITY
  • 20 High-Current Channels
    • All supporting up to 40A
  • Advanced Debugging Features
    • Higher-resolution current sensing
  • CAN & USB-C Connectivity
    • Update and diagnose faults via the REV Hardware Client
    • Connect to all devices on CAN bus for system-wide updating

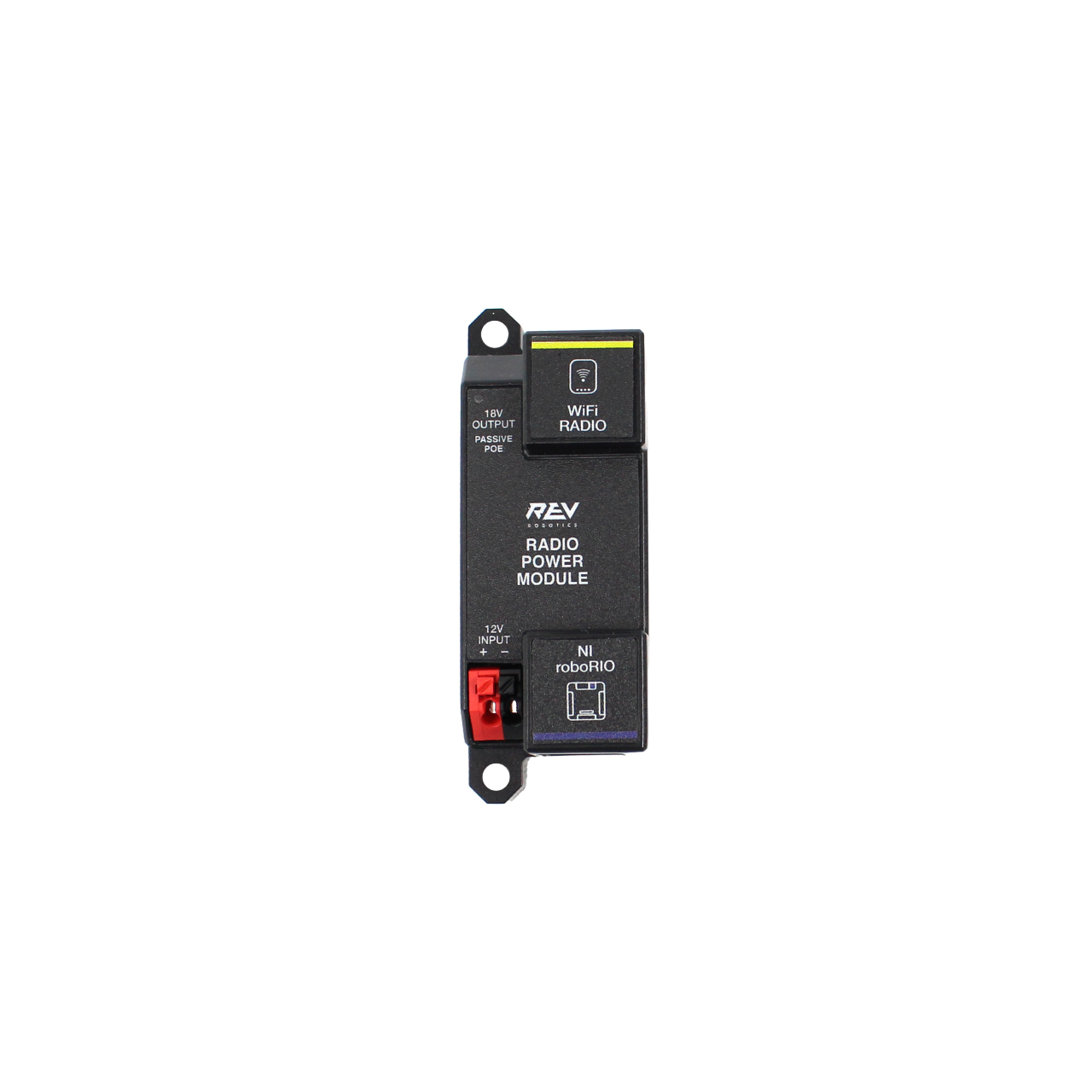

RADIO POWER MODULE

Radio Power Module

MORE CONVENIENCE
    • Easy to Wire
      • Utilizes push button terminals for power
    • Dedicated Radio Power Solution
      • Doesn't exist anywhere else in the market
      • Eliminates the need for powering the radio through a barrel power jack

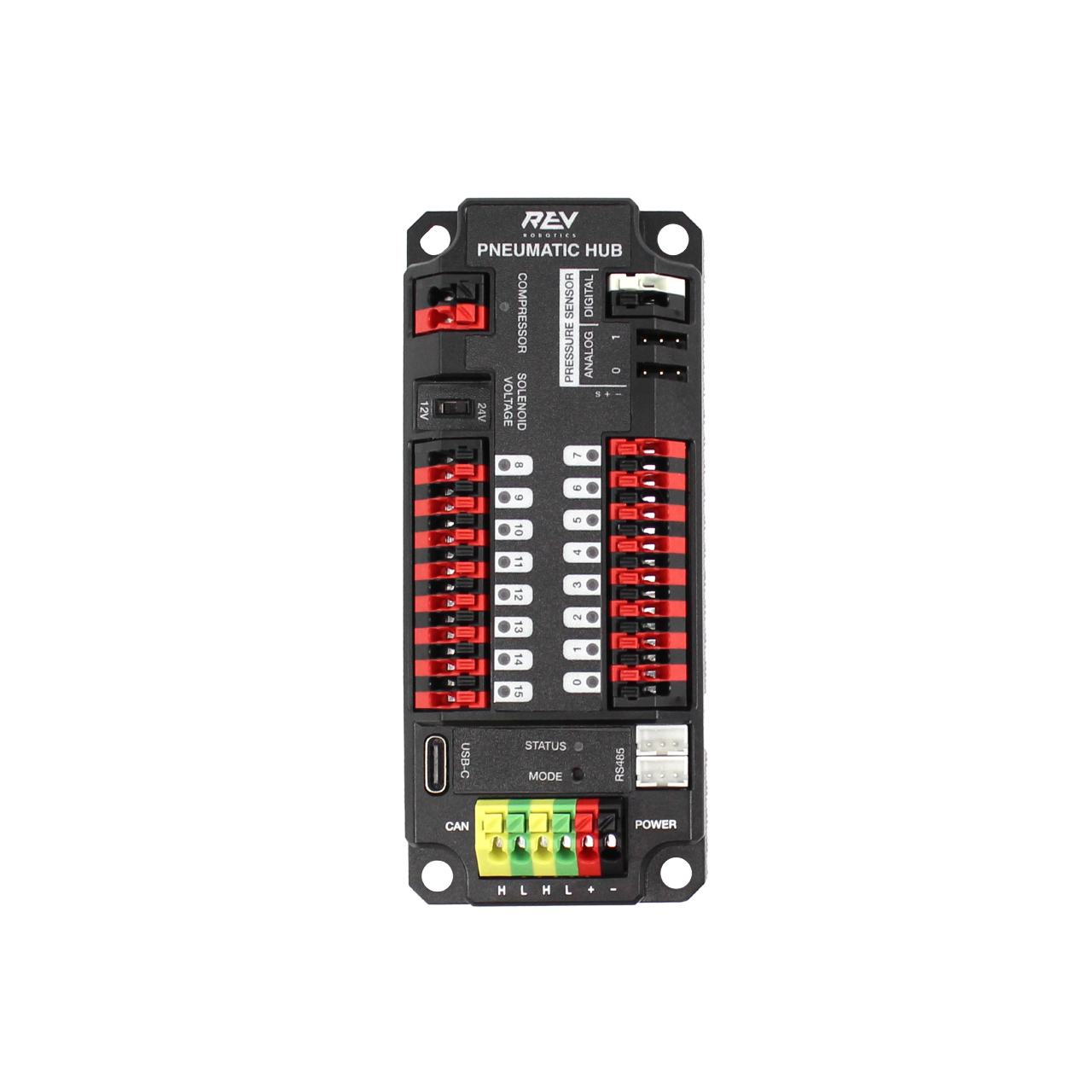

PNEUMATIC HUB

Pneumatic Hub



MORE CONTROL
  • 16 Solenoid Channels
    • Regulated 12V or 24V solenoid outputs
  • CAN & USB-C Connectivity
    • Real-time control and updating via the REV Hardware Client
    • Connect to all devices on CAN bus for system-wide updating
  • Analog and Digital Pressure Sensor Inputs

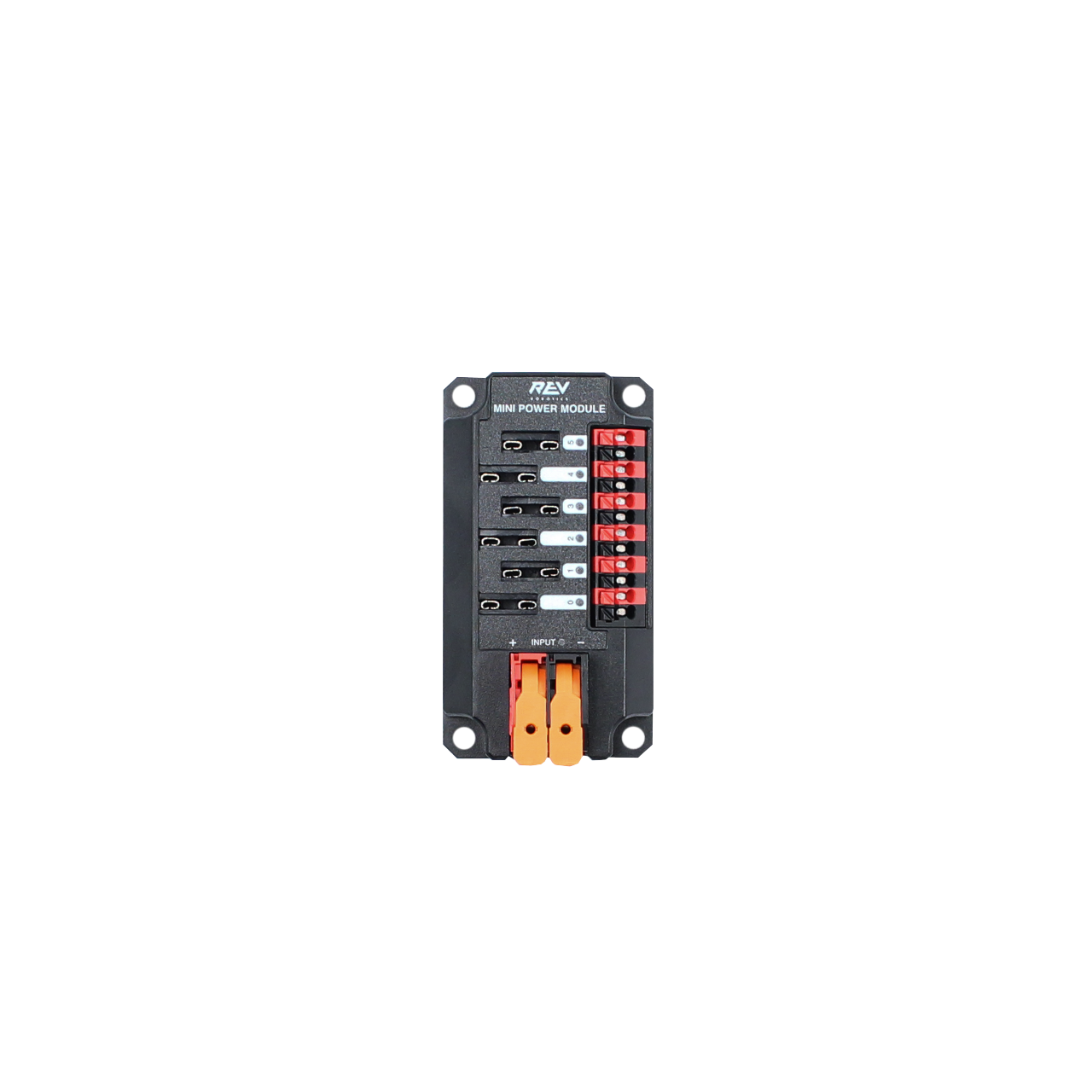

MINI POWER MODULE

Mini Power Module

MORE COMPACT
  • 6 Output Channels
    • Individual Channel Current Rating: 15A
    • Total Device Current Rating: 40A
  • Tool-less and Color-coded WAGO Terminals
    • Main power input - latching WAGO 2606 series
    • Output channels - push button WAGO 250 series
